Industries / Oil & Gas
Every element of a tank farm fails differently. Protect each one accordingly.
Select an element on the asset map — get the recommended coating system for its environment category, with TDS one click away.
[ 3D render of the asset ]
1 — tank roof · 2 — external shell · 3 — pipeline · 4 — internal lining
Selected · Element 2

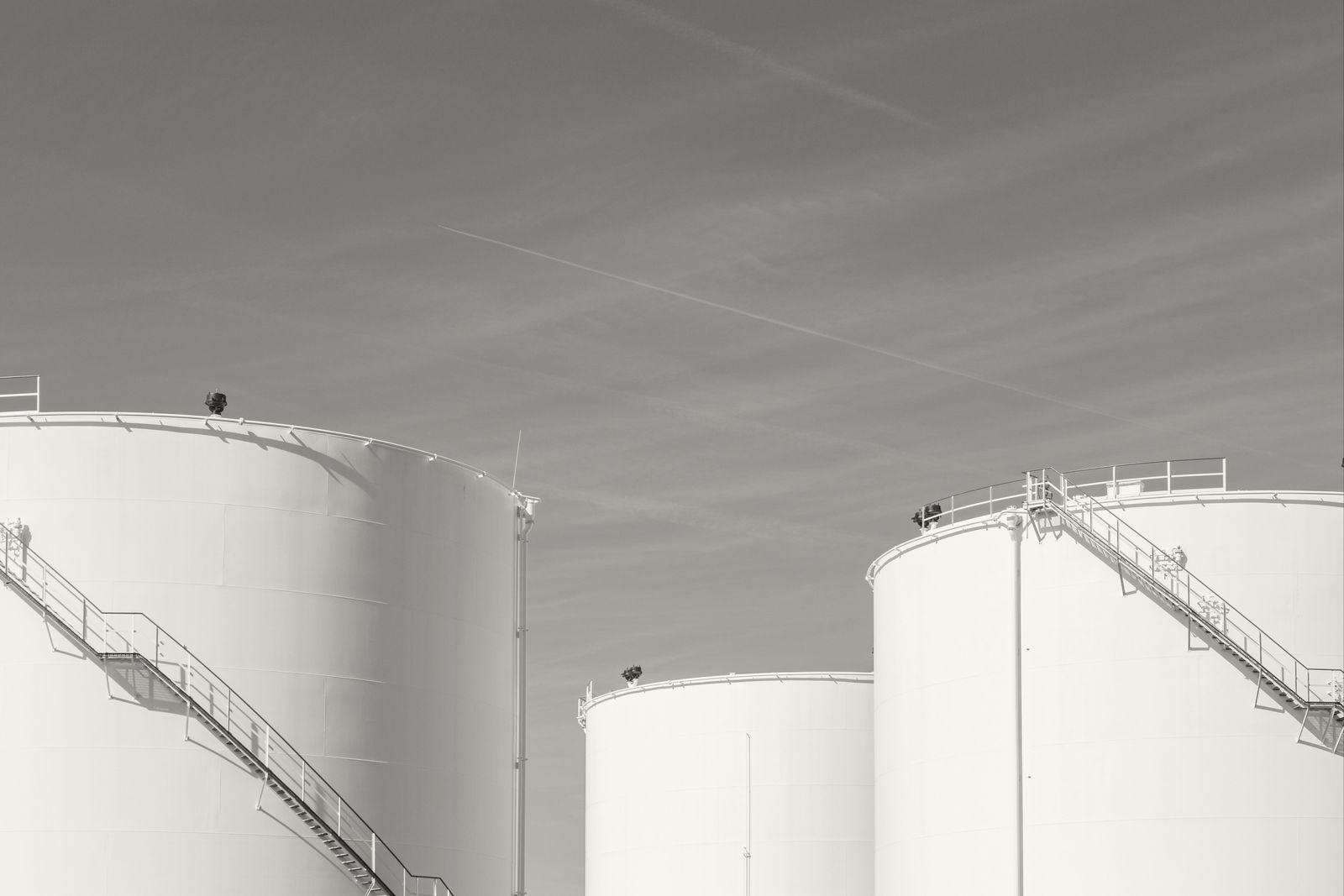

Storage tank — external shell
Environment category C5-M · high UV load · design life 25 years
- 1 · AKRUS EpozincZinc-rich epoxy primer · 60 µm DFTTDS
- 2 · AKRUS Epoxy S ProEpoxy intermediate · 120 µm DFTTDS
- 3 · AKRUS Polyur ProPolyurethane topcoat · 60 µm DFTTDS
Total system DFT: 240 µm3 coats · C5-M

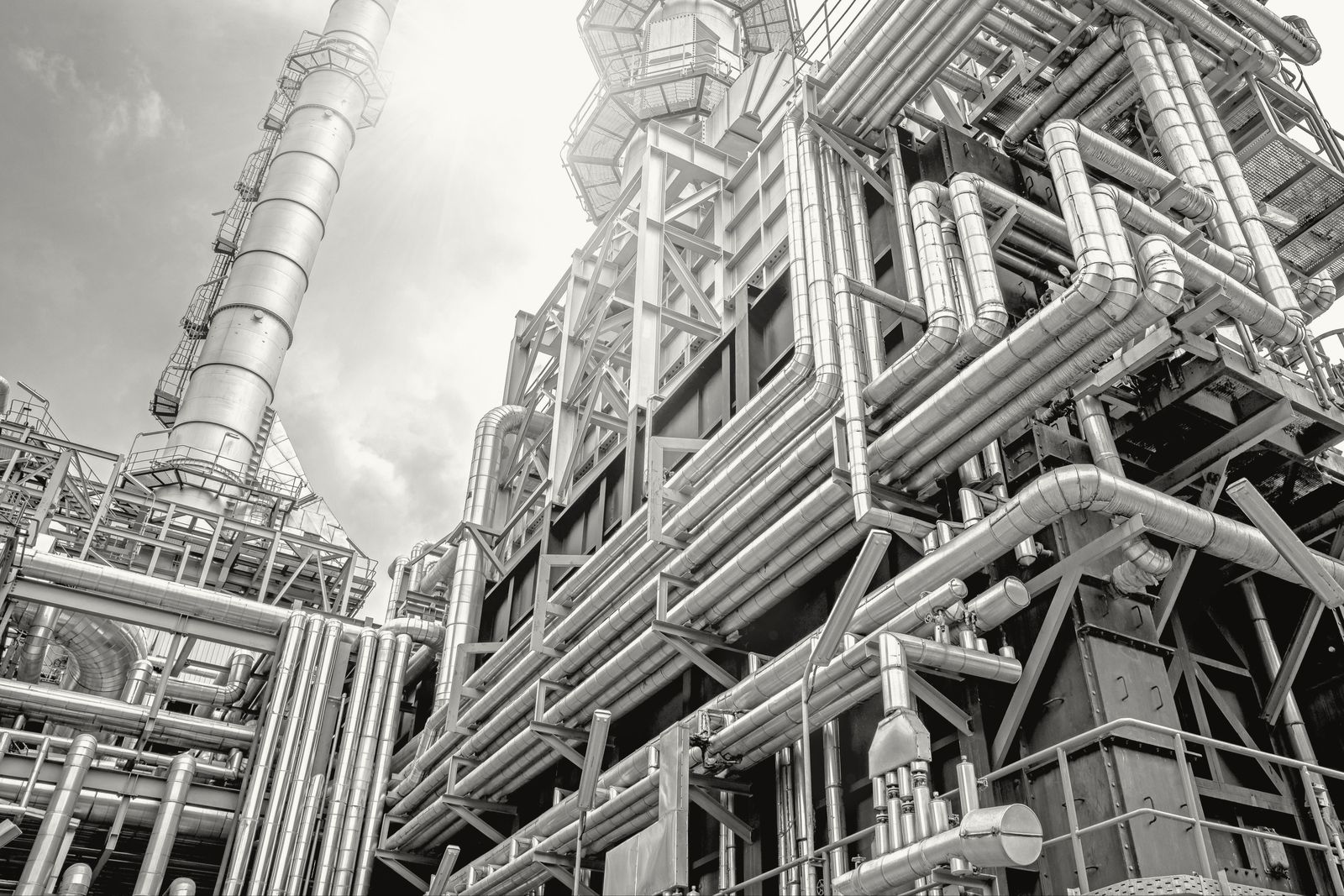

Typical Oil & Gas challenges we engineer for
C5-M / C5-I
Coastal & industrial atmosphere
Salt, humidity and UV on external steel and tank shells.
CUI
Corrosion under insulation
Invisible failure on insulated pipelines — found by thermal drone imaging.
Immersion
Tank & pipeline linings
Chemical resistance for internal surfaces in permanent contact with product.
Heat
High-temperature service
Heat-resistant systems for process equipment and stacks.
Reference project
Moscow Refinery — 3-coat protection in a C4 environment
System: AKRUS Epozinc + Epoxy S Pro + Polyur Pro.
Not sure of your environment category?
Order a site inspection — we will determine it instrumentally and specify the system.
